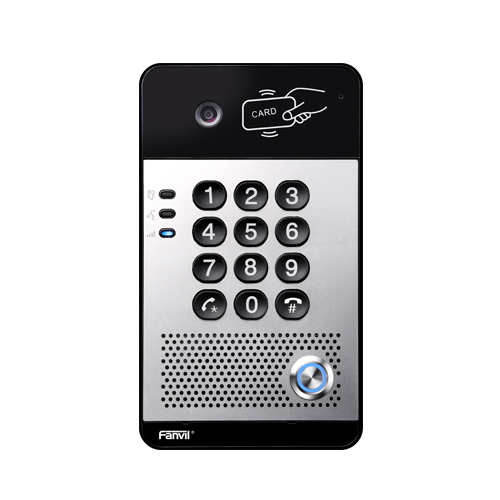

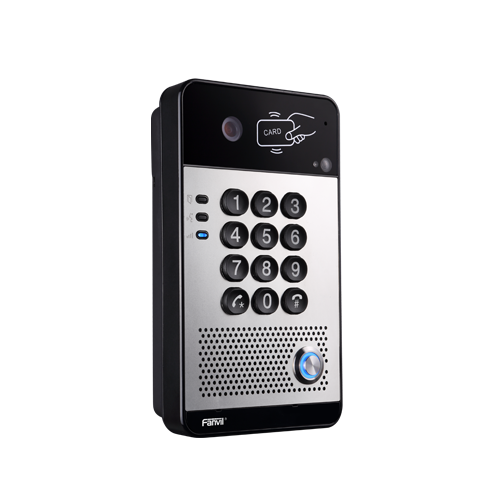

Fanvil i30 High-end Video Indoor Doorphone

The design of i30 SIP Video Door phone is based on experience and knowledge of Fanvil VoIP phone development. Stream transmission uses standard IP / RTP protocol and video transmission adopts RTSP. I30 have a variety of enterprise-level features and it is compatible with lots of major platforms, such as 3CX, Asterisk, Broadsoft, Elastix, etc.

See below for more details

Data Sheet

Manual

Product Set-Up

1 2 3 4

Access control function

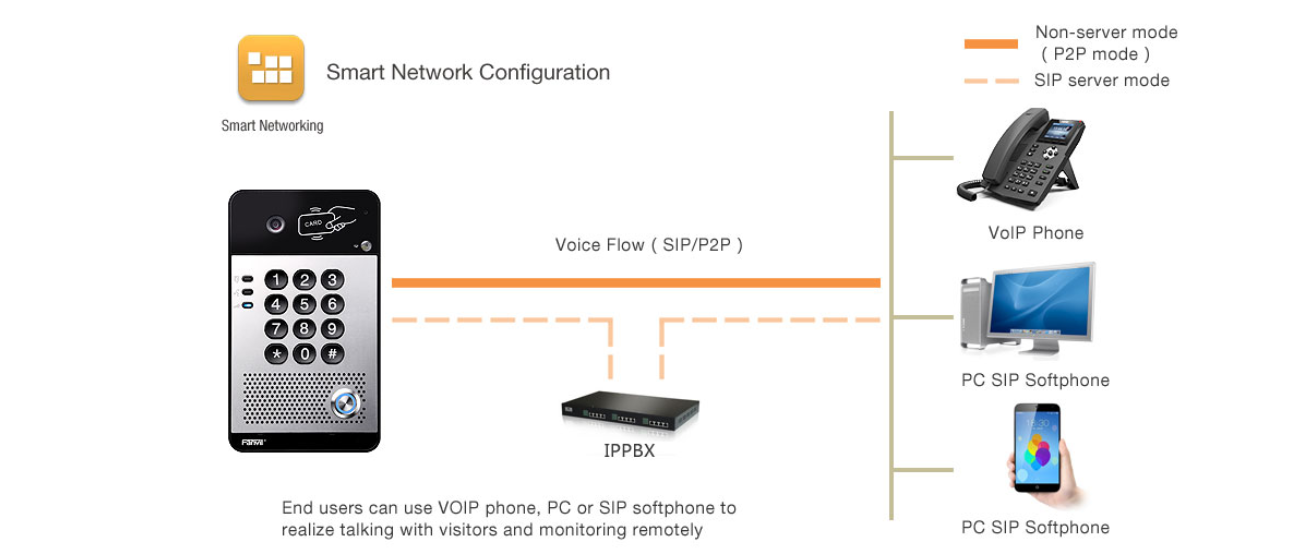

Two SIP lines, support SIP 2.0 (RFC3261) and related RFC
Full-duplex handsfree (HF)
Default Auto Answer
Open the door operation: DTMF, password, RFID card, switch
Support 200,000 door open records
Support 1000 remote access list
Support 1000 RFID cards
Support electric lock internal or external power supply options
Support customized DSS keys
Network Time Synchronization
Action URL / Active URI remote control

Audio

Narrowband speech codec: G.711a / u, G.723.1, G.726-32K, G.729AB
Broadband speech codec: G.722
Full Duplex Echo Cancellation (AEC)
DTMF: In-band, out-of-band DTMF (RFC2833) / SIP Info

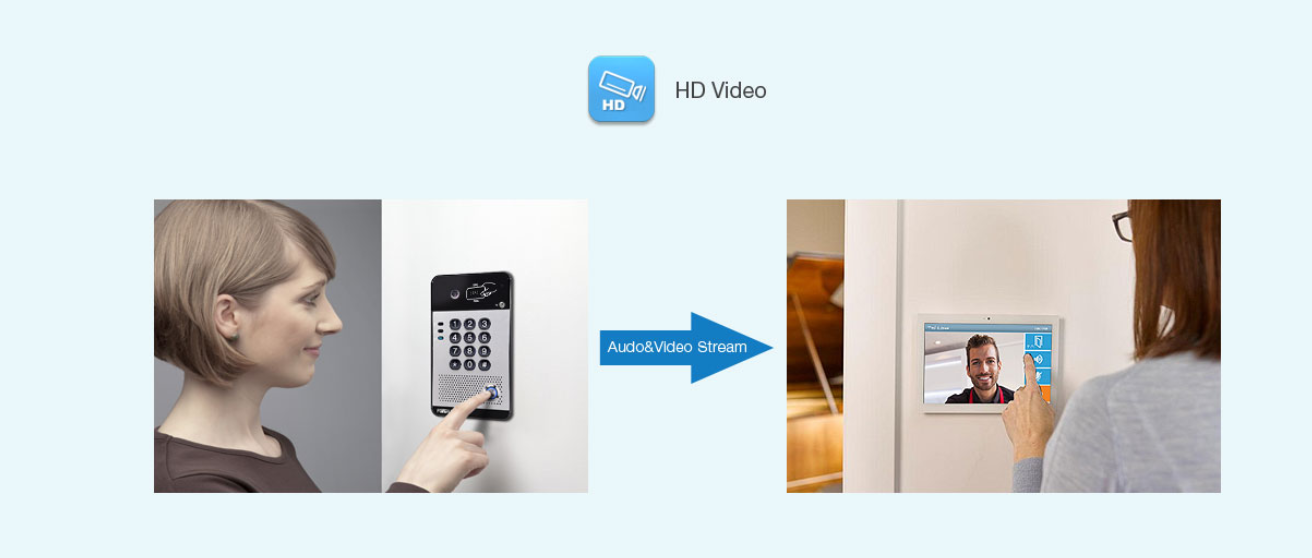

Video

Sensor: 1/4 “color CMOS
Pixels: 1 million
Video codec: H.264
Resolution: The main stream 1280 *720 Sub-stream 352*288(CIF), 704*576（D1）
Viewing angle: 110 ° (H), 95 ° (V)
Minimum illumination: color 0.1Lux,black and white 0.01Lux, temporarily does not support infrared lighting

Networking/ Protocols

Support PoE (802.3af)
Primary and secondary DNS servers are supported
Support RTSP
Support VLAN
Support SNTP client
Support VPN L2TP / openVPN

Support SRTP

Support HTTP / HTTPS web pages
Support Qos: 802.1p / q, DSCP
Support MD5 authentication
Support Web Filter
DHCP / static / PPPoE
Support STUN

Physical Specifications

1 DSS button (speed dial button)
4 indicator lights (including hot-key backlight)
Numeric keypad
1 indoor switch
1 relay: MAX DC30V / 1A, AC125V / 0.5A
Active switching output: 12V / 650mA DC
RFID reader: ID (EM4100) standard type
IC(MIFARE ONE) custom type
RFID card number output: positive sequence output 8H10D
Microphone: -38dB
Speaker: 4Ω / 3W
WAN port: RJ-45, 10 / 100M adaptive
Power supply: 12V ± 15% / 1A DC or

POE

PoE: 802.3af (Class 3 – 6.49 to 12.95W)
Standby power: 2.76W, 12V / 230mA
Network cable: CAT5 or better
Shell material: metal surface, ABS bottom shell
Installation: wall-mounted installation
Operating temperature: -20 ~ 60 ℃
Storage temperature: -40 ~ 70 ℃
Relative humidity: 10 ~ 90%
Protection class: IP65
Equipment size: 160x93x35mm
Packing size: 178x104x55mm
Equipment weight: 330g
Package weight: 450g
