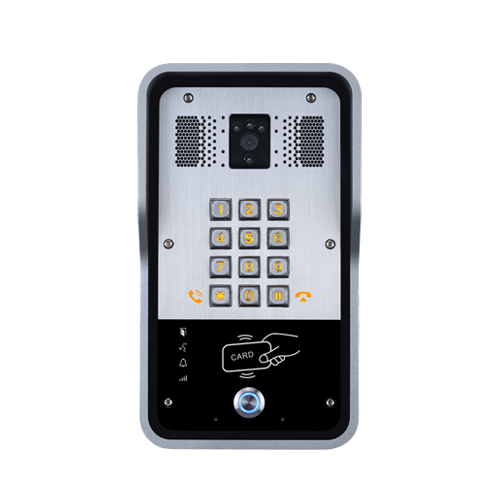

Fanvil i31S High-end Video Doorphone

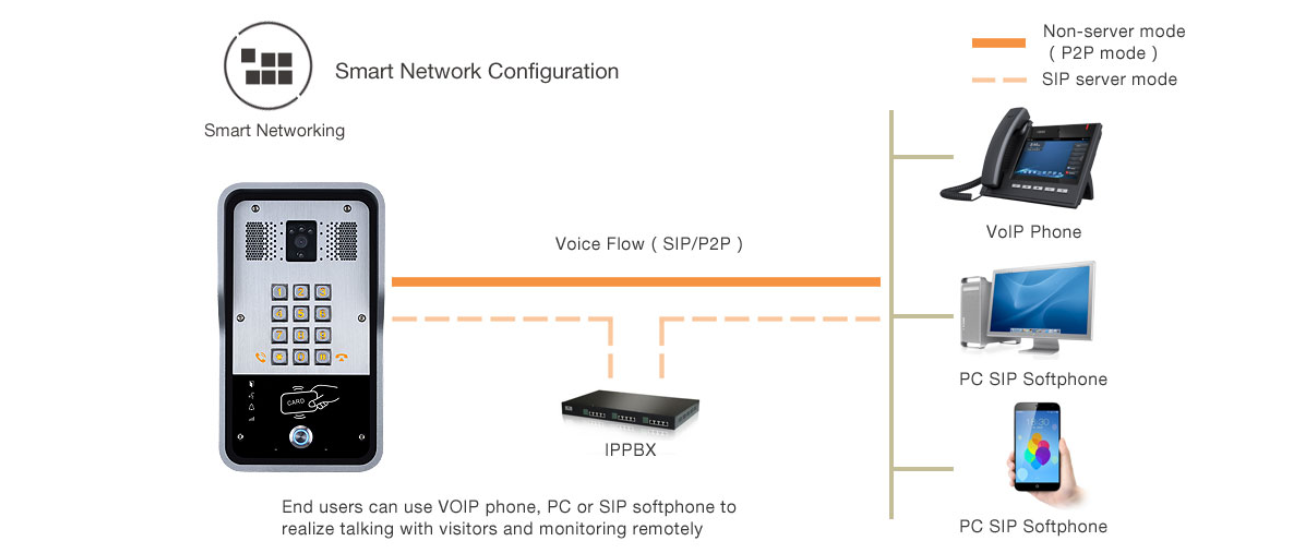

The Fanvil i31S High-end Video Doorphone is an all-in-one access control, intercom, and broadcasting solution that features built-in HD camera support for 2-SIP lines and PoE.

Secure any location or entryway with the Fanvil i31s. Protected against dust and water with an (IP65 rating) the i31S is tough and reliable. It is compatible with major platforms such as 3CX, Asterisk, Broadsoft, Elastix and more.

See more information below

Data Sheet

USER QIG

User Manual

Access control function
– Two SIP lines, support SIP 2.0 (RFC3261) and related RFC
– POE Enabled
– Full-duplex handsfree (HF)
– Default Auto Answer

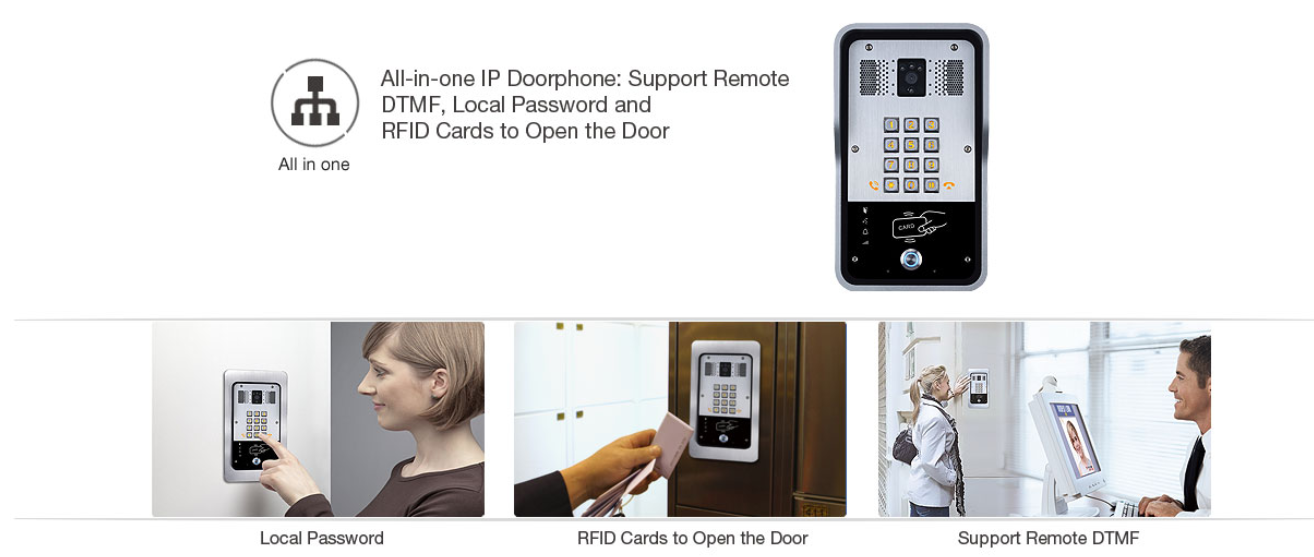

– Open the door operation: DTMF, password, RFID card, switch
– Support 200,000 door open records
– Support 1000 remote access list
– Support 1000 RFID cards
– Support electric lock internal or external power supply options
– Support customized DSS keys
– Network Time Synchronization
– Action URL / Active URI remote control

Audio
– Narrowband speech codec: G.711a / u, G.723.1, G.726-32K, G.729AB
– Broadband speech codec: G.722
– Full Duplex Echo Cancellation (AEC) – 96ms tail-length
– DTMF: In-band, out-of-band DTMF (RFC2833) / SIP Info

Video
– Sensor: 1/3 “color CMOS
– Pixels: CIF,QCIF,VGA,4CIF,720P(HD)
– Video codec: H.264
– Resolution: The main stream 1280 *720 Sub-stream 352*288(CIF), 704*576(D1)
– Viewing angle: 120°(H), 109°(V)
– Minimum illumination: color 0.1Lux,black and white 0.01Lux

Networking/ Protocols
– Support PoE (802.3af)
– Primary and secondary DNS servers are supported
– Support RTSP
– Support VLAN
– Support SNTP client
– Support VPN L2TP / openVPN
– Support SRTP
– Support HTTP / HTTPS web pages
– Support Qos: 802.1p / q, DSCP
– Support MD5 authentication
– Support Web Filter
– DHCP / static / PPPoE
– Support STUN

 Deployment & Maintenance
– Auto-Provisioning via FTP / TFTP / HTTP / HTTPS / DHCP / TR069 / SIP PNP
– Web Management Portal
– Web-based Packet Dump
– Configuration Backup / Restore
– Entry Log Export
– Access Table Export / Import
– Firmware Upgrade
– Syslog(include door access logs)

Physical Specifications
– 1 DSS button (speed dial button)
– 5 indicator lights (including hot-key backlight)
– Numeric keypad

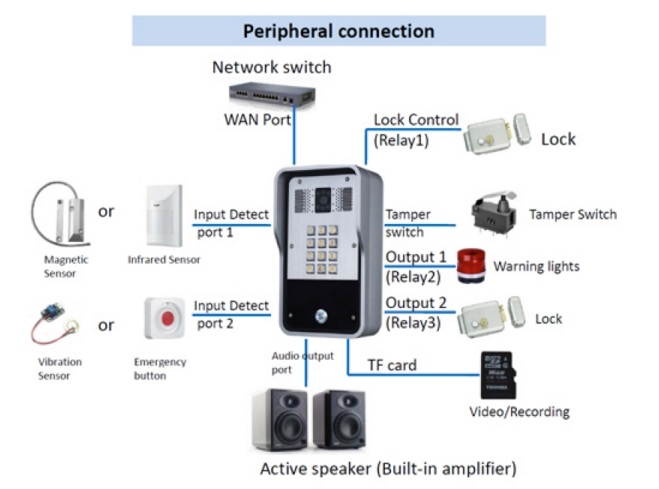

– 1 indoor switch
– 1 relay: MAX DC30V / 1A, AC125V / 0.5A
– Active switching output: 12V / 650mA DC
– Camera: 130W CMOS /IR-CUT
– RFID reader: ID (EM4100) standard type
IC(MIFARE ONE) custom type
– Microphone: -38dB
– Speaker: 4Ω / 3W
– WAN port: RJ-45, 10 / 100M adaptive
– Power supply: 12V ± 15% / 1A DC or POE
– PoE: 802.3af (Class 3 – 6.49 to 12.95W)
– Network cable: CAT5 or better
– Shell Material: Aluminum Cover and Cast-Aluminum back case

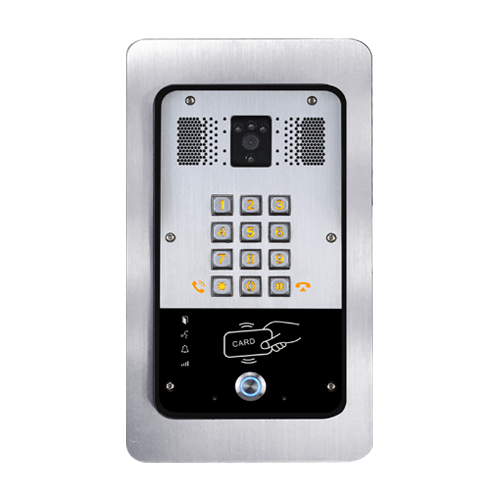

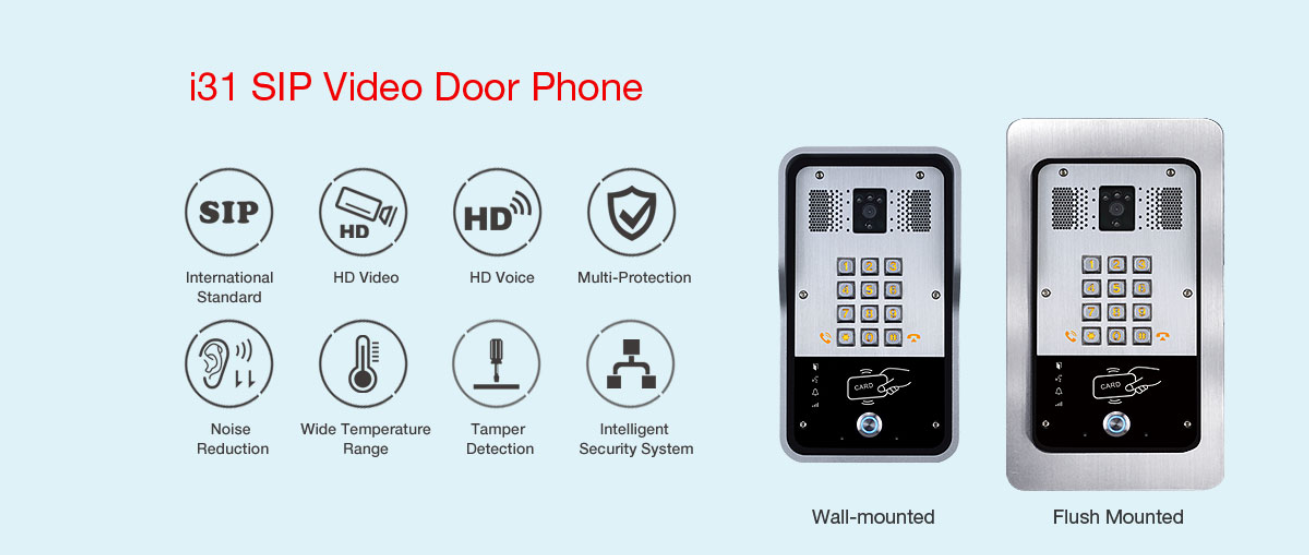

– Installation method: Wall-mount or In-Wall installation
– Storage Temperature:-40~70℃
– Working Humidity: 10~90%
– Protection level: IP65 and IK10
– Overall Dimension: 223 x 130 x 74mm (W x H x L)
– Gift Box Dimensions: 310 x 175 x 115mm
– Outer CTN Dimensions: 370 x 370 x 330mm(6 PCS)
– Package Weight:1800g
– Package Weight:1.85KG
